Dampers SF

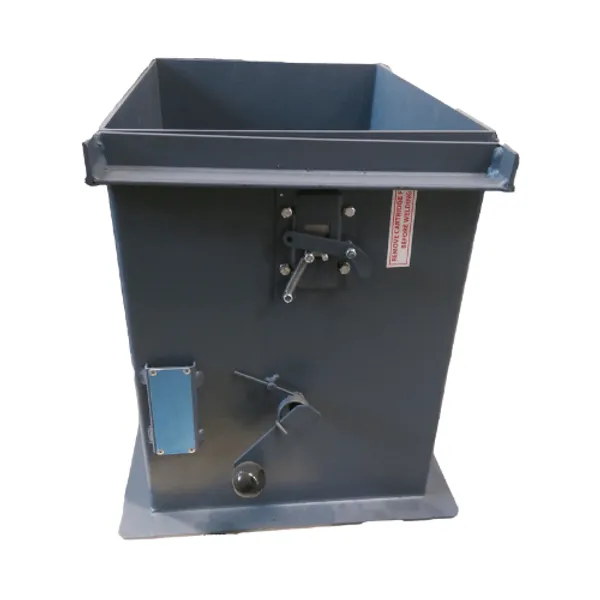

SFDR fire dampers

Download brochure  Contact us



SFDR fire dampers are used in offshore, marine and navy ventilation systems. The dampers are type-approved according to A-0 (A-60). The dampers can be installed in rectangular ducts. The dampers have a fusible link and prevent the spread of fire and smoke within the ventilation ductwork. The dampers can be welded directly on the bulkhead (as penetration) or installed in the ducting system with the optional flange. The dampers with non-standard dimensions are available on request. The dampers begin to close when the air pressure is below 1.5 bar and closes below 0.5 bar.

• Type-approved by most recognized classification societies: class A0 and A60 (A60 insulation in all cases).
• The damper has an indicator which shows whether the damper is open or closed.
• Nominal fuse release temperature: 72 ºC.
• For MED certificate, use a damper of 900 mm, including coaming and A60 insulation.
• Automatic electrical, pneumatic or spring operation system available.

SFDC fire dampers

SFDC fire dampers are used in offshore, marine and navy ventilation systems. The dampers are type-approved according to A-0 (A-60). The dampers can be installed in circular ducts. The dampers have a fusible link and prevent the spread of fire and smoke within the ventilation ductwork. The dampers can be welded directly on the bulkhead (as penetration) or installed in the ducting system with the optional flange. Non-standard dimensions are available on request. The dampers begin to close when the air pressure is below 1.5 bar and closes below 0.5 bar.

• Type-approved by most recognized classification societies: class A0 and A60 (A60 insulation in all cases).
• The damper has an indicator which shows whether the damper is open or closed.
• Nominal fuse release temperature: 72 ºC.
• For MED certificate, use a damper of 900 mm, including coaming and A60 insulation
• Automatic electrical, pneumatic or spring operation system available.

ROKL & PROKL smoke dampers

(P)ROKL smoke dampers are used in offshore, marine and navy ventilation systems. The dampers can be installed in circular ducts. The dampers prevent the spread of smoke within the ventilation ductwork. The dampers can be installed directly in insulated ducting systems. The dampers are used for non-insulated ducting systems. Non-standard dimensions are available on request.

• Smoke damper for air intake and exhaust air with spring system.
• Damper blades have thermal insulation.

More information about Dampers SF

Don’t hesitate to contact us for more information about our Dampers SF. Our skilled engineers are eager to explain the possibilities for your vessel or structure.

Download the Dampers SF brochure for detailed information and technical specifications.
